RSD RS-320胸/肺模體，RSD RS-320肺部模體,RSD RS-320胸部模體

Alderson肺/胸部模體是一個專門的模體，提供高度的現實主義在胸部X光片。肺/胸部模體模型帶有可拆卸的隔膜肺對插入物，無冠狀動脈。

RSD RS-320胸/肺模體，RSD RS-320肺部模體,RSD RS-320胸部模體特點和優點
廣泛的血管細節
不同程度的血管對比可用
可互換的正常和病理性肺
從頸部延伸到隔膜下方
選擇動物肺以匹配成年男性的大小。
允許肺交換，并提供無限數量的配置和疾病模擬。
肺動脈注射血液當量塑料。
提供血液當量肺動脈，或添加低或高對比劑。



RSD RS-320胸/肺模體，RSD RS-320肺部模體,RSD RS-320胸部模體為了證明不同的病理狀況，納入了五種標準病狀（可選項目）：



第一個左肋尖端有兩個連續的0.5厘米結節
0.6厘米結節疊加在左下葉大血管
1.5厘米結節，左側縱隔陰影
0.6厘米結節與右肺動脈混合
肺右下葉
保修信息：1年保修


LUNG/CHEST PHANTOMS

Extensive Vascular Detail
Different Degrees of Vascular Contrast Available
Interchangeable Normal and Pathological Lungs
Developed in conjunction with the University at California, Irvine's Department of Radiological Sciences, the Alderson Lung/Chest Phantom is a specialized phantom, providing a high degree of realism in chest radiography.

The Alderson Lung/Chest Phantom extends from the neck to below the diaphragm. It is molded about a male skeleton, corresponding to the external body size of a patient, 5 feet, 9 inches (175 cm) tall and weighing
162 lbs (73.5 kg). RSD materials are equivalent to natural bone and soft tissues.

Animal lungs are selected to match the size of an adult male. Lungs are fixed in the inflated state and are molded to conform to the pleural cavities of the phantom. The pulmonary arteries are injected with a blood equivalent plastic.

The Lung/Chest Phantom with simulated left coronary artery reveals several areas of coronary artery irregularity and narrowing.

To demonstrate different pathological conditions, five standard pathologies are incorporated: Please call for pricing.

Two contiguous 0.5 cm nodules at the tip of the first left rib.
A 0.6 cm nodule superimposed with large vessel in the left lower lobe.
A 1.5 cm nodule, left mediastinal shadow.
A 0.6 cm nodule blending in with the right pulmonary artery.
Pneumonia in the right lower lobe.

The Lung/Chest Phantom is available either with the diaphragm permanently sealed to the interior of the phantom, fixing the lungs in place, or with a removable diaphragm, which permits the interchange of lungs, and provides an unlimited number of configurations and disease simulations.

Custom pathologies are available as wrap around sheets on either or both lungs.

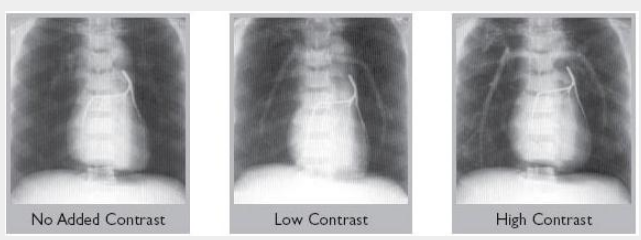

All models are available with blood-equivalent pulmonary arteries, or with low or high contrast media added.

MODEL NUMBERS

RS-310:Lung/Chest Phantom with permanently sealed diaphragm
RS-315:Lung/Chest Phantom with permanently sealed diaphragm and left coronary artery
RS-320:Lung/Chest Phantom with removeable diaphragm lung pair insert without coronary artery
RS-330:Lung/Chest Phantom with removeable diaphragm lung pair insert with coronary artery
RS-340:Lung/Pair insert without coronary artery
RS-345:Lung/Pair insert with coronary artery

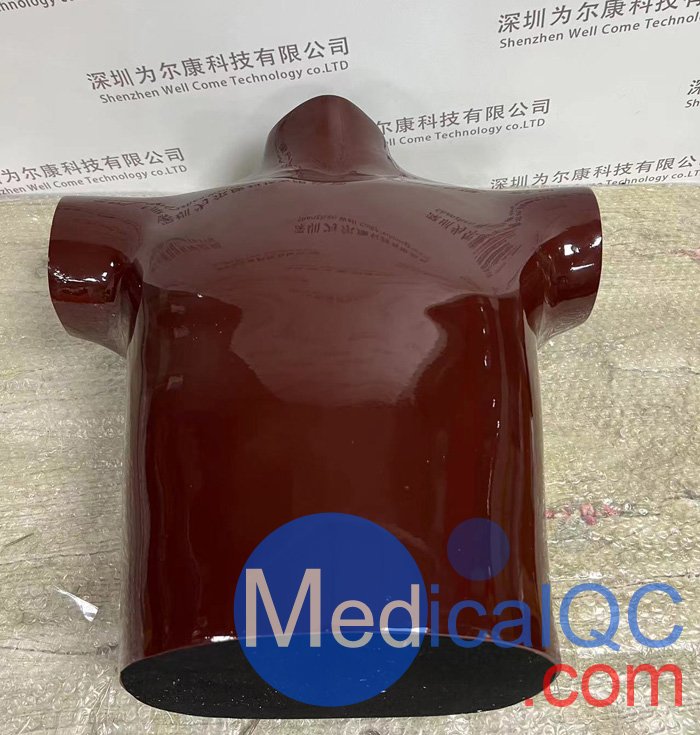

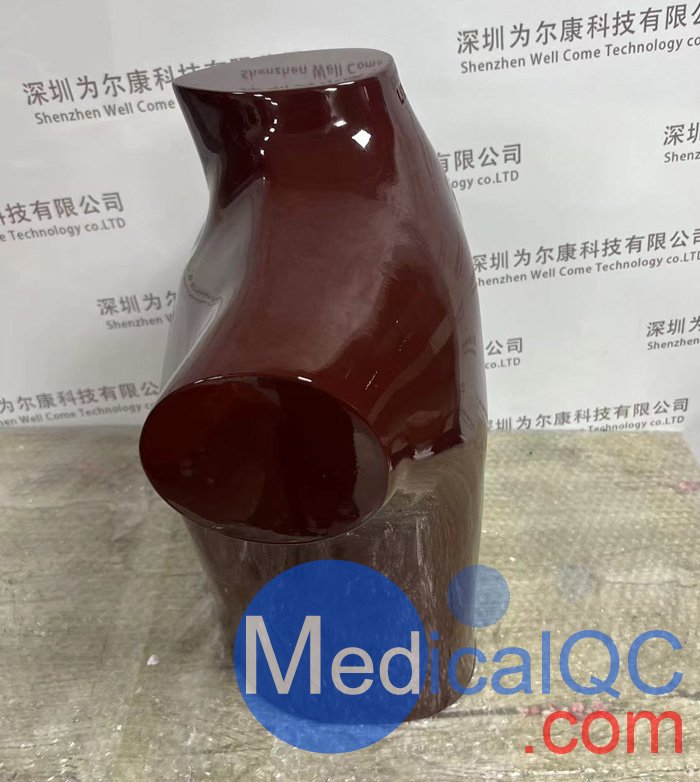

RSD RS-310胸/肺模體，RSD RS-310肺部模體實拍圖：
